A micro inverter is a small inverter designed to work with individual solar panels rather than strings of panels. It converts DC electricity from a single panel into AC electricity. Micro inverters are often installed on each solar panel, allowing for optimized performance for each panel independently. Here are the key components of a micro inverter:

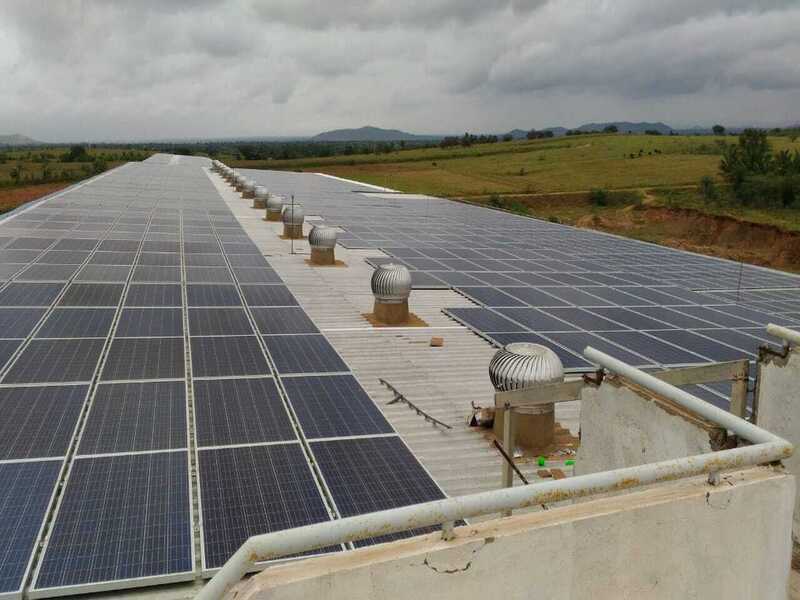

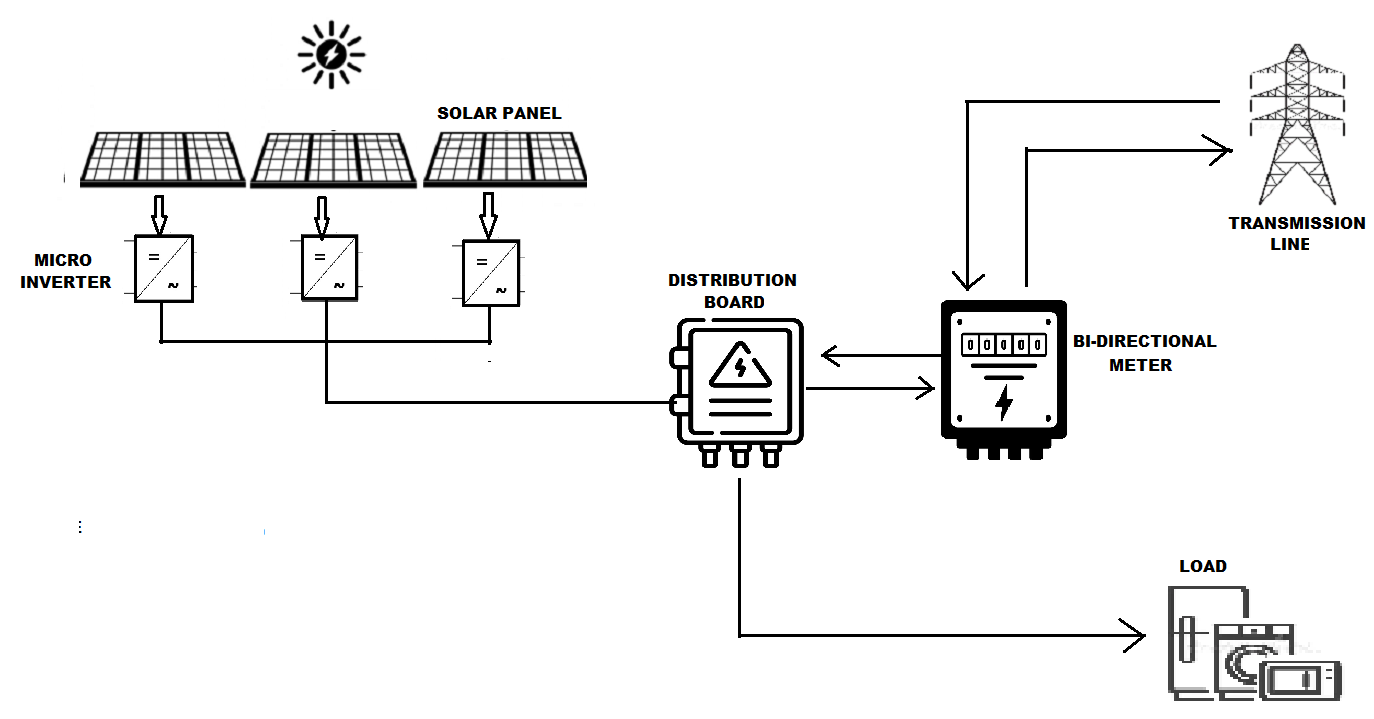

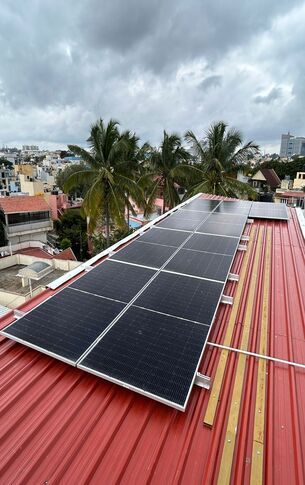

Key Components of a Grid-Tied Solar System
- DC Input (Solar Panel Connection):This is where the direct current (DC) from the solar panel is connected to the micro inverter. Each micro inverter typically works with one solar panel at a time.
- Maximum Power Point Tracking (MPPT): The MPPT algorithm is an essential component that ensures the micro inverter constantly adjusts to extract the maximum possible power from the solar panel, regardless of changing environmental conditions like temperature or shading.
- Inverter Stage (DC-AC Conversion): The core function of the micro inverter is to convert the DC electricity from the solar panel into alternating current (AC). This is achieved using power electronics such as transistors (e.g., IGBTs or MOSFETs), which manage the power conversion process.
- AC Output: The converted AC electricity is output from the micro inverter, which is then sent to the electrical grid or to a home’s power system. The output must match the voltage and frequency required by the grid or household appliances.
- Communication Interface: Micro inverters often have a communication interface (wired or wireless) that allows for remote monitoring and control. Users can check the performance of individual panels via apps or web portals. This is beneficial for troubleshooting and optimizing performance.
- Cooling System: Like string inverters, micro inverters generate heat during operation. A cooling system, typically in the form of a heat sink or passive cooling design, is used to dissipate this heat and ensure optimal performance.
- Protection Circuitry: Micro inverters come with built-in protection against various faults such as over-voltage, over-current, short circuits, and temperature-related issues. This protection ensures safety and reliability during operation.
- Grounding: Proper grounding is essential for the safe operation of the micro inverter, preventing electrical shock hazards and ensuring the system’s protection.
- Enclosure (Weatherproof Housing): Micro inverters are often placed outside, so they come with a weatherproof and durable enclosure that protects the internal components from environmental factors like rain, dust, and UV exposure.
- Power Output Stage (Grid Connection): The micro inverter connects to the grid or local electrical system at a point where the AC power is synchronized with the grid voltage and frequency. Some micro inverters may have transformers to provide galvanic isolation.
